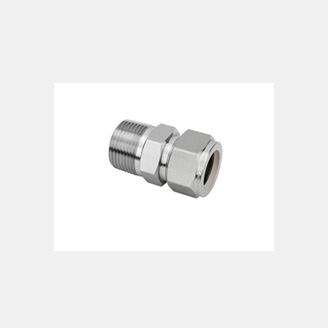

Fractional Tube—ISO Tapered Thread(RT)

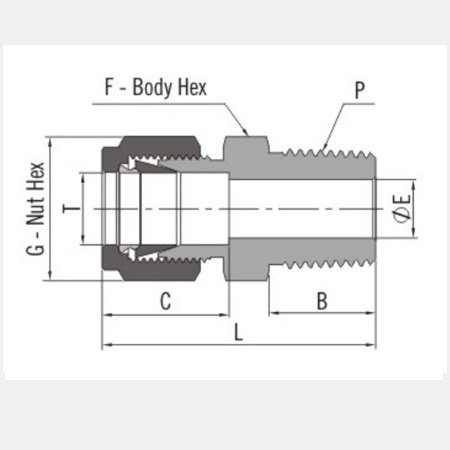

| T-Tube 0.D.(in.) | P-RT Size | Basic_Ordering Number | DIM mm L | DIM mm B | DIM mm C | DIM mm E | DIM mm G | DIM mm F | Inter-changes with |
| 1/8 | 1/8 | -CM-S2-RT2 | 30.5 | 9.7 | 12.7 | 2.3 | 11.1 | 11.1 | -200-1-2RT |
| 1/8 | 1/4 | -CM-S2-RT4 | 35.6 | 14.2 | 12.7 | 2.3 | 11.1 | 14.3 | -200-1-RT4 |
| 1/4 | 1/8 | -CM-S4-RT2 | 32.8 | 9.7 | 15.2 | 4.8 | 14.3 | 12.7 | -200-1-2RT |
| 1/4 | 1/4 | -CM-S4-RT4 | 37.8 | 14.2 | 15.2 | 4.8 | 14.3 | 14.3 | -400-1-4RT |
| 1/4 | 3/8 | -CM-S4-RT6 | 38.4 | 14.2 | 15.2 | 4.8 | 14.3 | 17.5 | -400-1-6RT |
| 1/4 | 1/2 | -CM-S4-RT8 | 44.7 | 19.1 | 15.2 | 4.8 | 14.3 | 22.2 | -400-1-8RT |
| 5/16 | 1/8 | -CM-S5-RT2 | 34.0 | 9.7 | 16.3 | 4.8 | 15.9 | 14.3 | -500-1-2RT |
| 5/16 | 1/4 | -CM-S5-RT4 | 38.6 | 14.2 | 16.3 | 6.4 | 15.9 | 14.3 | -500-1-4RT |
| 3/8 | 1/8 | -CM-S6-RT2 | 35.3 | 9.7 | 16.8 | 4.8 | 17.5 | 15.9 | -600-1-2RT |
| 3/8 | 1/4 | -CM-S6-RT4 | 39.9 | 14.2 | 16.8 | 7.1 | 17.5 | 15.9 | -600-1-4RT |
| 3/8 | 3/8 | -CM-S6-RT6 | 39.9 | 14.2 | 16.8 | 7.1 | 17.5 | 17.5 | -600-1-6RT |
| 3/8 | 1/2 | -CM-S6-RT8 | 46.2 | 19.1 | 16.8 | 7.1 | 17.5 | 22.2 | -600-1-8RT |
| 3/8 | 3/4 | -CM-S6-RT12 | 47.8 | 19.1 | 16.8 | 7.1 | 17.5 | 27.0 | -600-1-12RT |
| 1/2 | 1/4 | -CM-S8-RT4 | 43.4 | 14.2 | 22.9 | 7.1 | 22.2 | 20.6 | -810-1-4RT |
| 1/2 | 3/8 | -CM-S8-RT6 | 43.4 | 14.2 | 22.9 | 9.7 | 22.2 | 20.6 | -810-1-6RT |
| 1/2 | 1/2 | -CM-S8-RT8 | 49.0 | 19.1 | 22.9 | 10.4 | 22.2 | 22.2 | -810-1-8RT |
| 1/2 | 3/4 | -CM-S8-RT12 | 50.5 | 19.1 | 22.9 | 10.4 | 22.2 | 27.0 | -810-1-12RT |
| 5/8 | 1/2 | -CM-S10-RT8 | 49.0 | 19.1 | 24.4 | 11.9 | 25.4 | 23.8 | -1010-1-8RT |
| 3/4 | 3/4 | -CM-S12-RT12 | 50.5 | 19.1 | 24.4 | 15.7 | 28.6 | 27.0 | -1210-1-12RT |
| 3/4 | 1 | -CM-S12-RT16 | 57.2 | 23.9 | 24.4 | 15.7 | 28.6 | 34.9 | -1210-1-8RT |
| 1 | 3/4 | -CM-S16-RT12 | 57.4 | 19.1 | 31.2 | 15.7 | 38.1 | 34.9 | -1610-1-12RT |
| 1 | 1 | -CM-S16-RT16 | 62.2 | 23.9 | 31.2 | 22.4 | 38.1 | 34.9 | -1610-1-16RT |
| brands | Fd-Lok |
|---|
